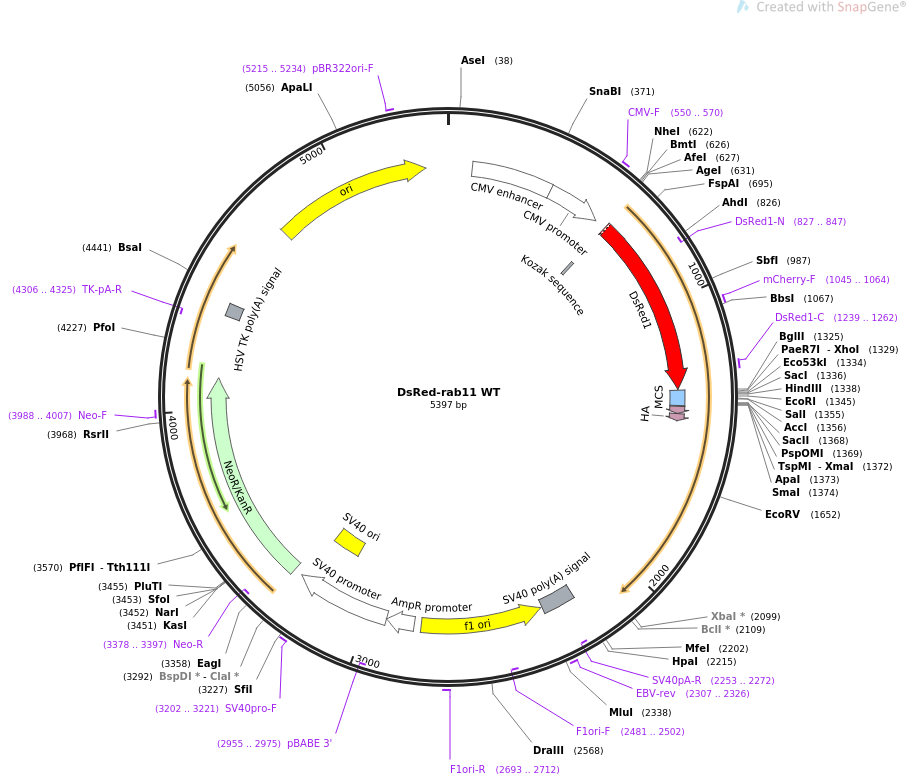

DsRed-rab11 WT

LOCUS       DsRed-rab11 WT                5397 bp ds-DNA     circular SYN 17-JUN-2022
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    DsRed-rab11 WT
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 5397)
  AUTHORS   Choudhury A, Dominguez M, Puri V, Sharma DK, Narita K, Wheatley CL,
            Marks DL, Pagano RE
  TITLE     Rab proteins mediate Golgi transport of caveola-internalized
            glycosphingolipids and correct lipid trafficking in Niemann-Pick C
            cells.
  JOURNAL   J Clin Invest. 2002 Jun . 109(12):1541-50.
  PUBMED    12070301
REFERENCE   2  (bases 1 to 5397)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Jun 17, 2022 from SnapGene Server 1.1.58
            http://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..5397
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     enhancer        92..395
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        396..599
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     primer_bind     550..570
                     /label=CMV-F
                     /note="Human CMV immediate early promoter, forward primer"
     regulatory      638..647
                     /regulatory_class="other"
                     /note="vertebrate consensus sequence for strong initiation
                     of translation (Kozak, 1987)"
     CDS             644..1321
                     /codon_start=1
                     /product="wild-type DsRed"
                     /label=DsRed1
                     /note="mammalian codon-optimized"
                     /translation="MVRSSKNVIKEFMRFKVRMEGTVNGHEFEIEGEGEGRPYEGHNTV
                     KLKVTKGGPLPFAWDILSPQFQYGSKVYVKHPADIPDYKKLSFPEGFKWERVMNFEDGG
                     VVTVTQDSSLQDGCFIYKVKFIGVNFPSDGPVMQKKTMGWEASTERLYPRDGVLKGEIH
                     KALKLKDGGHYLVEFKSIYMAKKPVQLPGYYYVDSKLDITSHNEDYTIVEQYERTEGRH
                     HLFL"
     primer_bind     complement(827..847)
                     /label=DsRed1-N
                     /note="DsRed1, reverse primer"
     primer_bind     1045..1064
                     /label=mCherry-F
                     /note="mCherry, forward primer"
     primer_bind     1239..1262
                     /label=DsRed1-C
                     /note="DsRed1, forward primer"
     misc_feature    1325..1381
                     /label=MCS
                     /note="multiple cloning site"
     CDS             1385..1411
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     CDS             1412..1438
                     /codon_start=1
                     /product="HA (human influenza hemagglutinin) epitope tag"
                     /label=HA
                     /translation="YPYDVPDYA"
     polyA_signal    2216..2337
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     primer_bind     complement(2253..2272)
                     /label=SV40pA-R
                     /note="SV40 polyA, reverse primer"
     primer_bind     2307..2326
                     /label=EBV-rev
                     /note="SV40 polyA terminator, reverse primer"
     rep_origin      complement(2344..2799)
                     /direction=LEFT
                     /label=f1 ori
                     /note="f1 bacteriophage origin of replication; arrow
                     indicates direction of (+) strand synthesis"
     primer_bind     complement(2481..2502)
                     /label=F1ori-F
                     /note="F1 origin, forward primer"
     primer_bind     2693..2712
                     /label=F1ori-R
                     /note="F1 origin, reverse primer"
     promoter        2826..2930
                     /gene="bla"
                     /label=AmpR promoter
     promoter        2932..3289
                     /label=SV40 promoter
                     /note="SV40 enhancer and early promoter"
     primer_bind     complement(2955..2975)
                     /label=pBABE 3'
                     /note="SV40 enhancer, reverse primer for pBABE vectors"
     rep_origin      3140..3275
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     3202..3221
                     /label=SV40pro-F
                     /note="SV40 promoter/origin, forward primer"
     CDS             3324..4118
                     /codon_start=1
                     /gene="aph(3')-II (or nptII)"
                     /product="aminoglycoside phosphotransferase from Tn5"
                     /label=NeoR/KanR
                     /note="confers resistance to neomycin, kanamycin, and G418
                     (Geneticin(R))"
                     /translation="MIEQDGLHAGSPAAWVERLFGYDWAQQTIGCSDAAVFRLSAQGRP
                     VLFVKTDLSGALNELQDEAARLSWLATTGVPCAAVLDVVTEAGRDWLLLGEVPGQDLLS
                     SHLAPAEKVSIMADAMRRLHTLDPATCPFDHQAKHRIERARTRMEAGLVDQDDLDEEHQ
                     GLAPAELFARLKASMPDGEDLVVTHGDACLPNIMVENGRFSGFIDCGRLGVADRYQDIA
                     LATRDIAEELGGEWADRFLVLYGIAAPDSQRIAFYRLLDEFF"
     primer_bind     complement(3378..3397)
                     /label=Neo-R
                     /note="Neomycin resistance gene, reverse primer"
     primer_bind     3988..4007
                     /label=Neo-F
                     /note="Neomycin resistance gene, forward primer"
     primer_bind     complement(4306..4325)
                     /label=TK-pA-R
                     /note="Thymidine kinase polyA, reverse primer"
     polyA_signal    4350..4397
                     /label=HSV TK poly(A) signal
                     /note="herpes simplex virus thymidine kinase
                     polyadenylation signal (Cole and Stacy, 1985)"
     rep_origin      4726..5314
                     /direction=RIGHT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     5215..5234
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
ORIGIN
        1 ttctgtggat aaccgtatta ccgccatgca ttagttatta atagtaatca attacggggt
       61 cattagttca tagcccatat atggagttcc gcgttacata acttacggta aatggcccgc
      121 ctggctgacc gcccaacgac ccccgcccat tgacgtcaat aatgacgtat gttcccatag
      181 taacgccaat agggactttc cattgacgtc aatgggtgga gtatttacgg taaactgccc
      241 acttggcagt acatcaagtg tatcatatgc caagtacgcc ccctattgac gtcaatgacg
      301 gtaaatggcc cgcctggcat tatgcccagt acatgacctt atgggacttt cctacttggc
      361 agtacatcta cgtattagtc atcgctatta ccatggtgat gcggttttgg cagtacatca
      421 atgggcgtgg atagcggttt gactcacggg gatttccaag tctccacccc attgacgtca
      481 atgggagttt gttttggcac caaaatcaac gggactttcc aaaatgtcgt aacaactccg
      541 ccccattgac gcaaatgggc ggtaggcgtg tacggtggga ggtctatata agcagagctg
      601 gtttagtgaa ccgtcagatc cgctagcgct accggtcgcc accatggtgc gctcctccaa
      661 gaacgtcatc aaggagttca tgcgcttcaa ggtgcgcatg gagggcaccg tgaacggcca
      721 cgagttcgag atcgagggcg agggcgaggg ccgcccctac gagggccaca acaccgtgaa
      781 gctgaaggtg accaagggcg gccccctgcc cttcgcctgg gacatcctgt ccccccagtt
      841 ccagtacggc tccaaggtgt acgtgaagca ccccgccgac atccccgact acaagaagct
      901 gtccttcccc gagggcttca agtgggagcg cgtgatgaac ttcgaggacg gcggcgtggt
      961 gaccgtgacc caggactcct ccctgcagga cggctgcttc atctacaagg tgaagttcat
     1021 cggcgtgaac ttcccctccg acggccccgt aatgcagaag aagaccatgg gctgggaggc
     1081 ctccaccgag cgcctgtacc cccgcgacgg cgtgctgaag ggcgagatcc acaaggccct
     1141 gaagctgaag gacggcggcc actacctggt ggagttcaag tccatctaca tggccaagaa
     1201 gcccgtgcag ctgcccggct actactacgt ggactccaag ctggacatca cctcccacaa
     1261 cgaggactac accatcgtgg agcagtacga gcgcaccgag ggccgccacc acctgttcct
     1321 gctcagatct cgagctcaag cttcgaattc tgcagtcgac ggtaccgcgg gcccgggatc
     1381 catgtaccca tacgatgttc cggattacgc ttacccatac gatgttccgg attacgctgg
     1441 tacccgcgac gacgagtacg actacctctt taaagttgtc cttattggag attctggtgt
     1501 tggaaagagt aatctcctgt ctcgatttac tcgaaatgag tttaatctgg aaagcaagag
     1561 caccattgga gtagagtttg caacaagaag catccaggtt gatggaaaaa caataaaggc
     1621 acagatatgg gacacagcag ggcaagagcg atatcgagct ataacatcag catattatcg
     1681 tggagctgta ggtgccttat tggtttatga cattgctaaa catctcacat atgaaaatgt
     1741 agagcgatgg ctgaaagaac tgagagatca tgctgatagt aacattgtta tcatgcttgt
     1801 gggcaataag agtgatctac gtcatctcag ggcagttcct acagatgaag caagagcttt
     1861 tgcagaaaag aatggtttgt cattcattga aacttcggcc ctagactcta caaatgtaga
     1921 agctgctttt cagacaattt taacagagat ttaccgcatt gtttctcaga agcaaatgtc
     1981 agacagacgc gaaaatgaca tgtctccaag caacaatgtg gttcctattc atgttccacc
     2041 aaccactgaa aacaagccaa aggtgcagtg ctgtcagaac atctaaggat ccaccggatc
     2101 tagataactg atcataatca gccataccac atttgtagag gttttacttg ctttaaaaaa
     2161 cctcccacac ctccccctga acctgaaaca taaaatgaat gcaattgttg ttgttaactt
     2221 gtttattgca gcttataatg gttacaaata aagcaatagc atcacaaatt tcacaaataa
     2281 agcatttttt tcactgcatt ctagttgtgg tttgtccaaa ctcatcaatg tatcttaacg
     2341 cgtaaattgt aagcgttaat attttgttaa aattcgcgtt aaatttttgt taaatcagct
     2401 cattttttaa ccaataggcc gaaatcggca aaatccctta taaatcaaaa gaatagaccg
     2461 agatagggtt gagtgttgtt ccagtttgga acaagagtcc actattaaag aacgtggact
     2521 ccaacgtcaa agggcgaaaa accgtctatc agggcgatgg cccactacgt gaaccatcac
     2581 cctaatcaag ttttttgggg tcgaggtgcc gtaaagcact aaatcggaac cctaaaggga
     2641 gcccccgatt tagagcttga cggggaaagc cggcgaacgt ggcgagaaag gaagggaaga
     2701 aagcgaaagg agcgggcgct agggcgctgg caagtgtagc ggtcacgctg cgcgtaacca
     2761 ccacacccgc cgcgcttaat gcgccgctac agggcgcgtc aggtggcact tttcggggaa
     2821 atgtgcgcgg aacccctatt tgtttatttt tctaaataca ttcaaatatg tatccgctca
     2881 tgagacaata accctgataa atgcttcaat aatattgaaa aaggaagagt cctgaggcgg
     2941 aaagaaccag ctgtggaatg tgtgtcagtt agggtgtgga aagtccccag gctccccagc
     3001 aggcagaagt atgcaaagca tgcatctcaa ttagtcagca accaggtgtg gaaagtcccc
     3061 aggctcccca gcaggcagaa gtatgcaaag catgcatctc aattagtcag caaccatagt
     3121 cccgccccta actccgccca tcccgcccct aactccgccc agttccgccc attctccgcc
     3181 ccatggctga ctaatttttt ttatttatgc agaggccgag gccgcctcgg cctctgagct
     3241 attccagaag tagtgaggag gcttttttgg aggcctaggc ttttgcaaag atcgatcaag
     3301 agacaggatg aggatcgttt cgcatgattg aacaagatgg attgcacgca ggttctccgg
     3361 ccgcttgggt ggagaggcta ttcggctatg actgggcaca acagacaatc ggctgctctg
     3421 atgccgccgt gttccggctg tcagcgcagg ggcgcccggt tctttttgtc aagaccgacc
     3481 tgtccggtgc cctgaatgaa ctgcaagacg aggcagcgcg gctatcgtgg ctggccacga
     3541 cgggcgttcc ttgcgcagct gtgctcgacg ttgtcactga agcgggaagg gactggctgc
     3601 tattgggcga agtgccgggg caggatctcc tgtcatctca ccttgctcct gccgagaaag
     3661 tatccatcat ggctgatgca atgcggcggc tgcatacgct tgatccggct acctgcccat
     3721 tcgaccacca agcgaaacat cgcatcgagc gagcacgtac tcggatggaa gccggtcttg
     3781 tcgatcagga tgatctggac gaagagcatc aggggctcgc gccagccgaa ctgttcgcca
     3841 ggctcaaggc gagcatgccc gacggcgagg atctcgtcgt gacccatggc gatgcctgct
     3901 tgccgaatat catggtggaa aatggccgct tttctggatt catcgactgt ggccggctgg
     3961 gtgtggcgga ccgctatcag gacatagcgt tggctacccg tgatattgct gaagagcttg
     4021 gcggcgaatg ggctgaccgc ttcctcgtgc tttacggtat cgccgctccc gattcgcagc
     4081 gcatcgcctt ctatcgcctt cttgacgagt tcttctgagc gggactctgg ggttcgaaat
     4141 gaccgaccaa gcgacgccca acctgccatc acgagatttc gattccaccg ccgccttcta
     4201 tgaaaggttg ggcttcggaa tcgttttccg ggacgccggc tggatgatcc tccagcgcgg
     4261 ggatctcatg ctggagttct tcgcccaccc tagggggagg ctaactgaaa cacggaagga
     4321 gacaataccg gaaggaaccc gcgctatgac ggcaataaaa agacagaata aaacgcacgg
     4381 tgttgggtcg tttgttcata aacgcggggt tcggtcccag ggctggcact ctgtcgatac
     4441 cccaccgaga ccccattggg gccaatacgc ccgcgtttct tccttttccc caccccaccc
     4501 cccaagttcg ggtgaaggcc cagggctcgc agccaacgtc ggggcggcag gccctgccat
     4561 agcctcaggt tactcatata tactttagat tgatttaaaa cttcattttt aatttaaaag
     4621 gatctaggtg aagatccttt ttgataatct catgaccaaa atcccttaac gtgagttttc
     4681 gttccactga gcgtcagacc ccgtagaaaa gatcaaagga tcttcttgag atcctttttt
     4741 tctgcgcgta atctgctgct tgcaaacaaa aaaaccaccg ctaccagcgg tggtttgttt
     4801 gccggatcaa gagctaccaa ctctttttcc gaaggtaact ggcttcagca gagcgcagat
     4861 accaaatact gttcttctag tgtagccgta gttaggccac cacttcaaga actctgtagc
     4921 accgcctaca tacctcgctc tgctaatcct gttaccagtg gctgctgcca gtggcgataa
     4981 gtcgtgtctt accgggttgg actcaagacg atagttaccg gataaggcgc agcggtcggg
     5041 ctgaacgggg ggttcgtgca cacagcccag cttggagcga acgacctaca ccgaactgag
     5101 atacctacag cgtgagctat gagaaagcgc cacgcttccc gaagggagaa aggcggacag
     5161 gtatccggta agcggcaggg tcggaacagg agagcgcacg agggagcttc cagggggaaa
     5221 cgcctggtat ctttatagtc ctgtcgggtt tcgccacctc tgacttgagc gtcgattttt
     5281 gtgatgctcg tcaggggggc ggagcctatg gaaaaacgcc agcaacgcgg cctttttacg
     5341 gttcctggcc ttttgctggc cttttgctca catgttcttt cctgcgttat cccctga
//
